YSI Brand pH Testing Meters

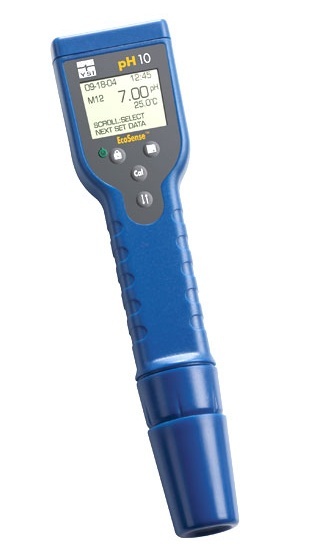

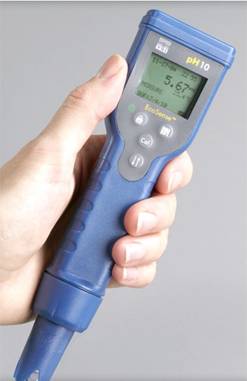

Catalog # 21-2680-01: pH10 – YSI EcoSense® Pen-style pH Tester Meter
The pH10 is the perfect instrument for economical spot sampling of pH and temperature in applications such as wastewater, surface water, aquaculture, hydroponics, pools, and education.
This ultra-compact instrument even includes a graphic display with on-screen instructions!
Available with single- or dual-junction electrodes (comes with single-junction electrode). No need to throw this pen-style pH instrument away when the sensor goes bad like some other products. Simply replace the electrode and within minutes you can keep testing!
Features
- Waterproof IP-67
- 1-year warranty
- Automatic calibration and buffer recognition
- 50-set memory (pH, temp, date and time stamp)
- Replaceable single- or double-junction electrode
- GLP functionality
- 1-, 2-, or 3-point calibration
- Hold feature locks stable readings on the display
- CE compliance
pH10 Instrument General Specifications
|
ATC Probe |
Thermistor, 10kΩ / 25°C |
|
Battery |
Four LR44 alkalines included with purchase |
|
Battery life |
200 hours or greater (low battery indicator) |
|
Memory |
Non-volatile; 50 sets (pH, temperature, date and time stamp); erase all data function |
|
Operating temperature range |
0.0 to 50.0 °C (32.0 to 122.0 °F) |
|
pH buffer recognition |
USA (4.01, 7.00, & 10.01) or NIST (4.01, 6.86, & 9.18) |
|
pH calibration temp |
0.0 to 60 °C (32.0 to 140.0 °F) |
|
pH offset recognition |
+90 mV at pH 7.00 or +98.3 mV / -81.7 mV at pH 6.86 |
|
pH slope recognition |
+30% at pH 4.00, 4.01, 9.18, or 10.01 |
|
pH temp compensation |
Auto 0.0 to 100.0 °C (32.0 to 212 °F) |
|
Warranty |
1-year instrument; 6-months electrode |
|
Water resistance |
IP-67 waterproof case |
|
Weight |
105 grams (3.7 ounces) with batteries |
pH10 System Specifications
|
Range |
Accuracy |
Resolution |
|
|
pH |
0.00 to 14.00 units |
±0.1
unit within 10 °C of calibration, |
0.01 units |
|
Temperature |
0.0
to 100.0 °C |
±0.3
°C |
0.1
°C |
Ordering Guide
|
Catalog # |
Image |
Description |
Price |
|
21-2680-01 |
|
pH10 instrument (includes 605113 pH electrode, batteries, instruction manual) |
Call for Current Pricing |
|
21-2680-02 |
|

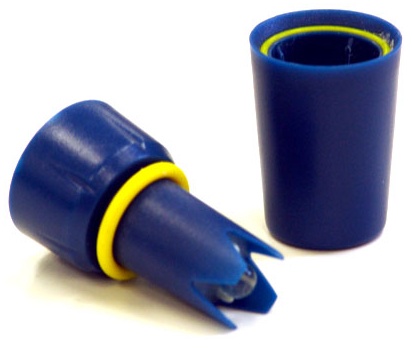

Single-junction pH replacement sensor |
Call for Current Pricing |
|
21-2680-03 |
|

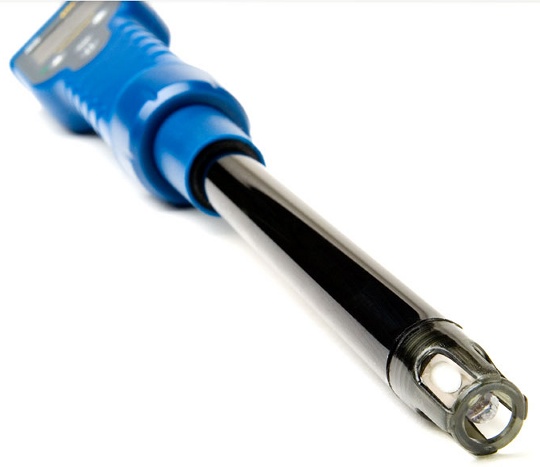

Double-junction pH electrode |
Call for Current Pricing |
|
21-2680-04 |
|

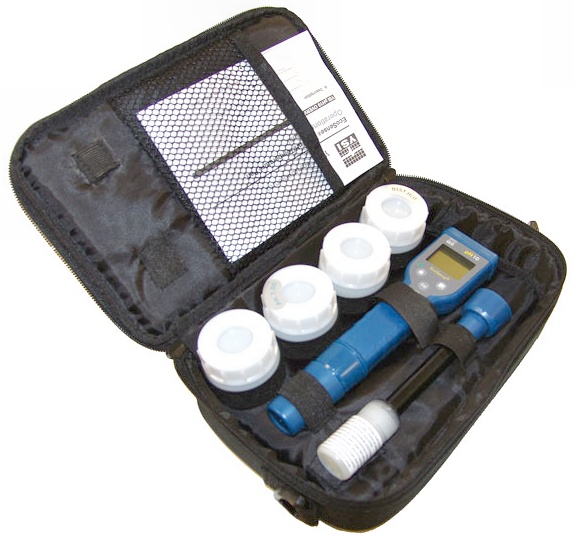

pH10 Pen-style pH Tester Meter Soft-sided Carrying Case |
Call for Current Pricing |
|
21-2680-05 |
|

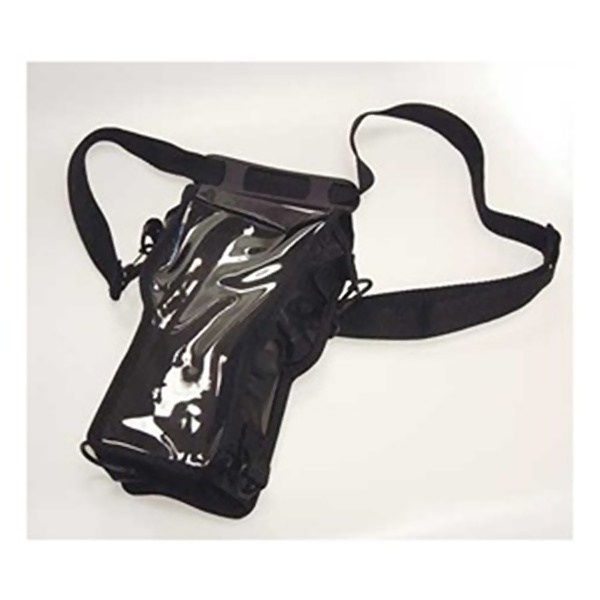

pH10 Carrying Case, Form-Fitted, Clear & Black Vinyl w/Shoulder Strap |
Call for Current Pricing |
|
21-2680-06 |
|

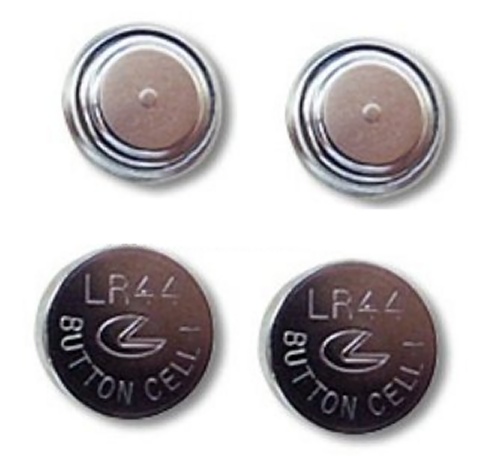

Replacement batteries (4 LR44 alkaline batteries) |
Call for Current Pricing |

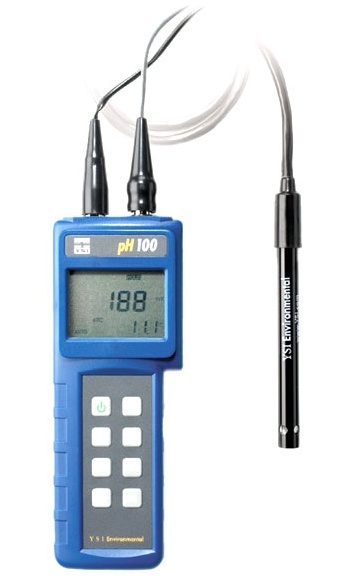

Catalog # 21-2670-01: pH100 – YSI EcoSense® Handheld pH or mV Meter Kit
The low overall cost of ownership includes an economical list price, competitively priced probes compared to other manufacturers and rugged, reliability limiting down time. Designed specifically for spot sampling applications, the pH100 meter will fill the need for simple, one-handed operation instrumentation.
Whether the need is a single monitoring instrument for temperature and pH or mV for wastewater, surface water, or aquaculture, the pH100 tester is up to the task.
The YSI pH100 also allows the ability to connect a flat-tipped (112-1) double-junction and piercing-tipped (111-1) probe for additional applications. In addition, the pH probes have waterproof, submersible cables along the length of the cable unlike many competitive probes.
Features
pH100 Kit and Accessories
|
Catalog # |
Image |
Description |
Price |
|
21-2670-01 |
|

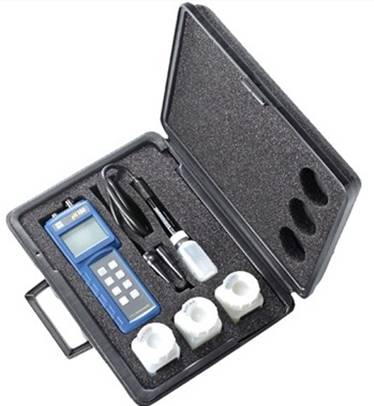

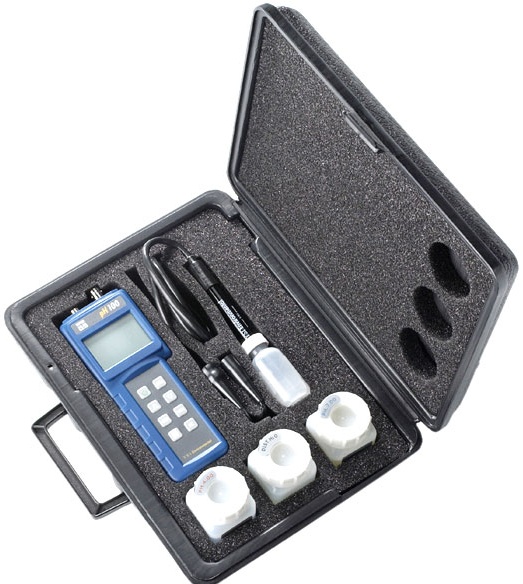

Complete pH100 Kit includes: YSI EcoSense® pH100 Handheld pH or mV Meter, Waterproof pH, mV, Temp Electrode with 1 Meter Cable and Hard Sided Carrying Case |
Call for Current Pricing |
|
21-2670-02 |
|
YSI EcoSense® pH100 Handheld pH or mV Meter |
Call for Current Pricing |
|
21-2670-03 |
|

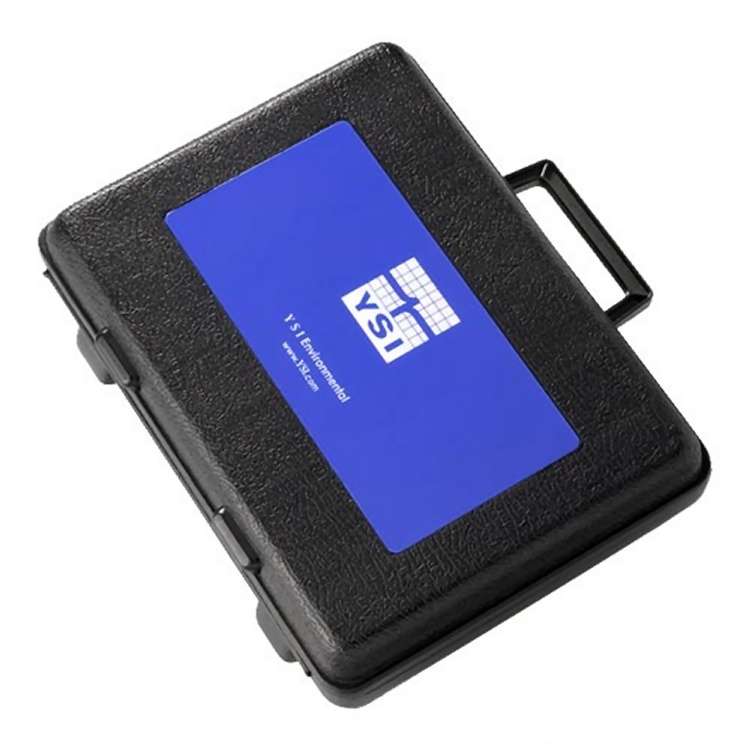

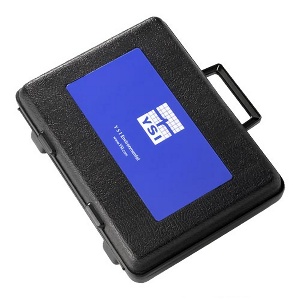

YSI Model 180 Hardsided Carrying Case For pH100 |
Call for Current Pricing |
|
21-2670-04 |
|

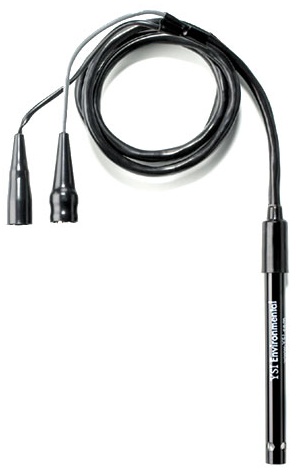

1-meter waterproof Y-cable with combo pH electrode and temperature cable |
Call for Current Pricing |
pH100 Instrument General Specifications
|
ATC Probe |
Thermistor, 10kΩ / 25° C |
|
|
Audio feedback |
Yes, all keys |
|
|
Autolock feature |
Yes |
|
|
Battery |
One 9 volt included with purchase, |
|
|
Calibration back-up |
Yes |
|
|
Dimensions |
Size |
70 mm width x 186 mm length (2.8 in. x 7.3 in.) |
|
Weight |
430 grams (1 lb) with battery |
|
|
Operating range |
Relative Humidity |
up to 95% |
|
Temperature |
0° to 50° C |
|
|
pH buffer recognition |
(4.01, 7.00, & 10.01) or (4.00, 6.86, & 9.18) |
|
|
pH calibration temperature |
0° C to 60° C |
|
|
pH offset recognition |
+90 mV at pH 7.00 or 6.86 |
|
|
pH slope recognition |
+30% at pH 4.00, 4.01, 9.18, or 10.01 |
|
|
pH temp compensation |
Auto/Manual -10.0° C to 120.0° C |
|
|
Warranty |
1-year instrument and 6-month electrode |
|
|
Water resistance |
IP-65 water resistant, splash resistant |
|
pH100 System Specifications
|
Range |
Accuracy |
Resolution |
|
|
pH |
-2 to 16 units |
±0.1% ±2 digit |
0.01 unit |
|
mV |
-1999 to +1250 mV |
±0.1% ±1 digit |
1 mV |
|
Temperature |
-10 to +120°C |
±0.3°C ±2 digit |
0.1°C |
